AL-R1 (Motor 200W X 2 / 20Ah Lithium)

Parameter

No.

Configuration

Item

1

Parameter

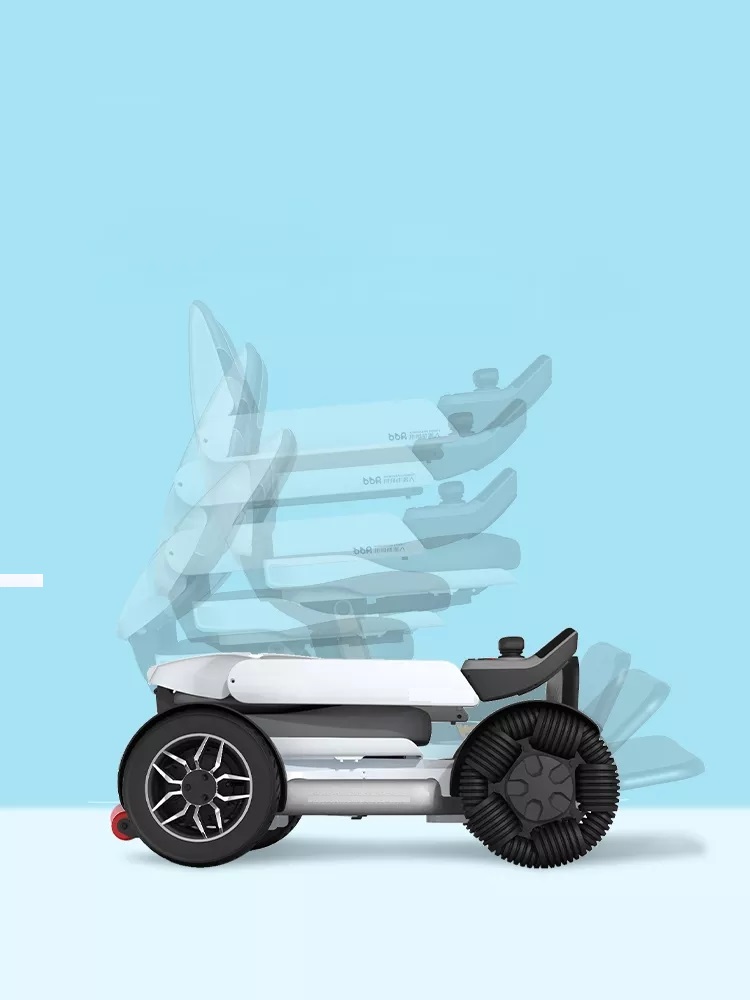

Folding mode

electric & automatic

2

body net weight

37.2kg

3

range

25km

4

battery capacity

20ah

5

Body size

1005 * 590 * 930mm

6

folding size

830 * 590 * 370mm

7

Package size

930 * 710 * 450mm

8

front wheel

10 inch omnidirectional wheel

9

rear wheel

10 inch inflatable wheel

10

Suspension

independent suspension

11

maximum speed:

6km/h

12

Obstacle crossing height

60mm

13

 ditch crossing width

10cm

14

maximum load bearing

120kg

15

Chassis clearance

 60mm

16

minimum turning radius

730mm

17

sitting height x width x depth

52cm x 52cm x 52cm

18

Cushion size

42x42cm

19

Climbing angle

10 degree

20

Slope angle

15 degree

R1 has below Advantages

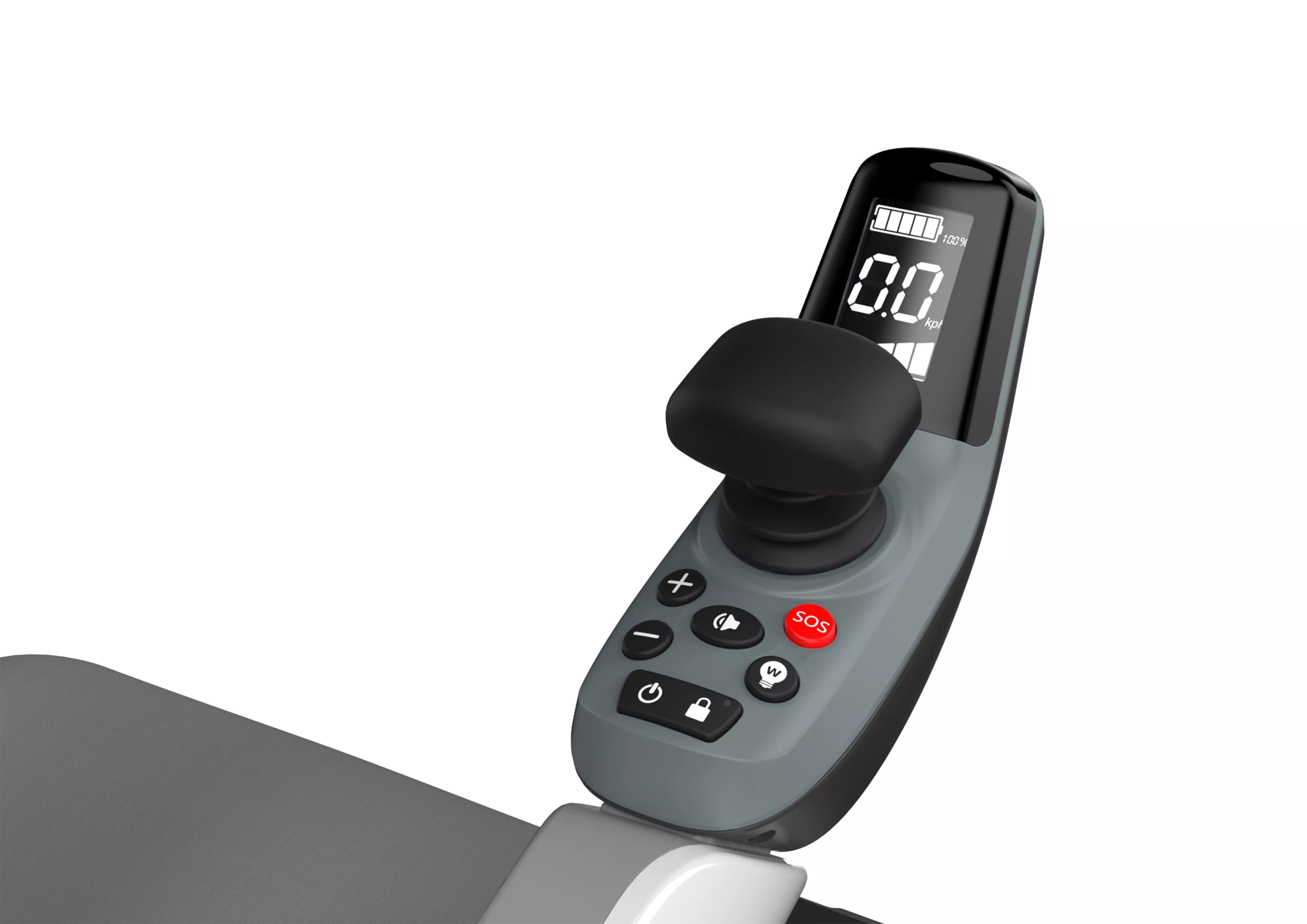

1. auto-foldable; 2. humanization and aesthetic design; 3. light weight; 4. high climbing capacity; 5. all directions; 6. suspension system and stablization system; 7. remote control. 8. high strength integrated chasis
